SKU#655-7275-B-NG.T4.96.VB

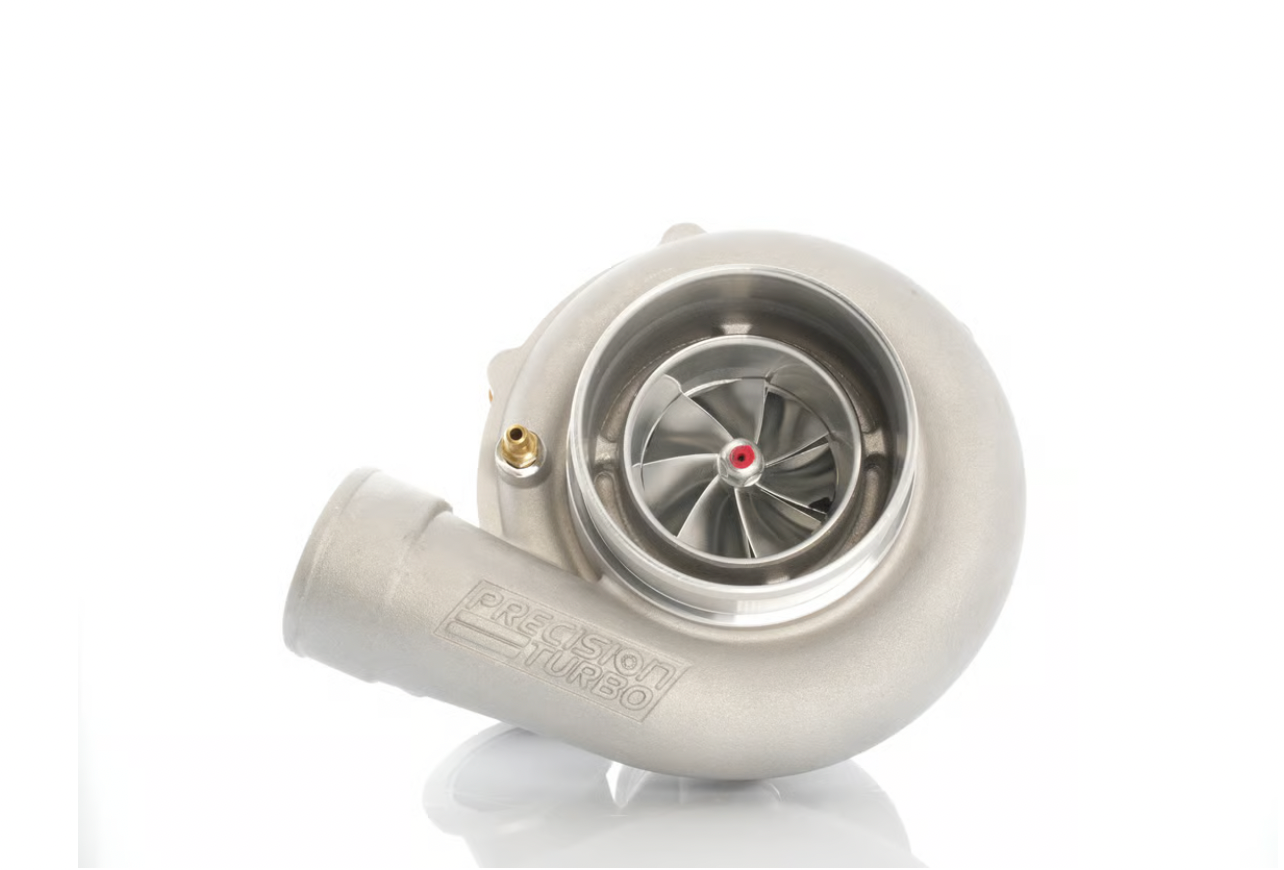

The all-new 7275 H Cover turbocharger features a NEXT GEN, 72mm CEA compressor wheel mated to our 75mm high flow turbine wheel. This unit is based on the H cover ball bearing turbo and is available with multiple turbine housing options. Designed to take your build to the NEXT GENERATION, the NEXT GEN Sportsman 72755 is a record setting turbocharger and is a great option for those looking to make upwards of 1,380hp.
- NEXT GENERATION RACE TECHNOLOGY
- Most powerful 72mm H cover turbocharger in the market.
- Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.
- All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios.
- Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity.
- High Flow 11 blade turbine wheel design featuring high temperature resistant Alloy.
- No price increase over the Gen 2 version.
Proven to provide a 15% improvement over the previous generation. Rated to support 1,380 flywheel horsepower.
Specifications:
- Compressor Wheel Inducer: 72mm
- Compressor Wheel Exducer: 99/101mm (Extended Tip)
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75mm
- Turbo Max Speed 136,150
- HP Anti-Surge Compressor Cover with 4.0" Inlet / 3" Outlet
- T4 .96 A/R V-Band Turbine Housing
We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, PTE can help you find the perfect turbocharger for your unique setup.
More Information
| Availability New |
In Stock / Available |
| Old Part Number |
28107216229 |
| Shipping Weight (Dimensional) |
30.210000 |
| Clearance Sale |
No |
| Availability |
In Stock |
| Part Type |
Turbochargers |
| Make |
Universal |
| Model |
Universal |
| Engine |
Universal |
| Brand |
Precision Turbo |
| Compressor Wheel Material |
Billet |
| Compressor Wheel Inducer |
72mm |
| Competitor Interchange Part Number |
28107216229 |
| Turbo Horsepower Range |
1250hp - 1500hp |
| Center Cartridge |
Ball Bearing |
| Exhaust Housing Material |
Cast Iron |
| Compressor Housings |
"HP (Anti-surge)" - 4.0" / 3.0" |
| Exhaust Wheel Exducer |
75mm |
| Exhaust Housing Inlet |
T4 |
| Exhaust Housing Outlet |
V-Band |
| Exhaust Housing AR |
.96 |
| Carb Legal |
No |
