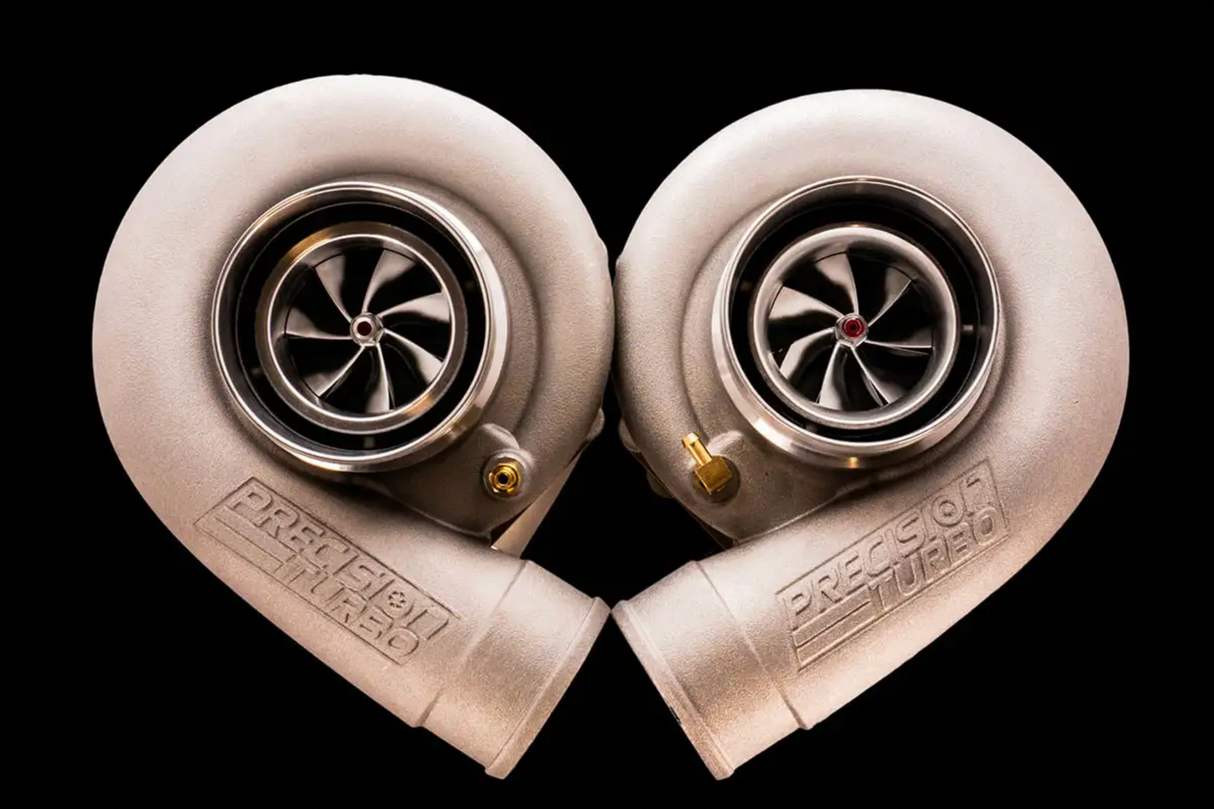

Precision Turbo Mirror Image Turbos Next Gen SCP 6466 Billet 64mm BB T3 VB 1.05 A/R V-Band SS

Introducing the all-new Precision Turbo Next Gen 6466 turbocharger. The Next Gen 6466 is now rated at 2000HP Pair and with the all-new SCP (S Cast Ported) compressor cover, offering a 4" inlet and 2.5" outlet.

This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.


Key Features

• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.

• HP Rating: 2000 HP Pair

• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.

• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.

• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.

• All-New SP compressor cover with 4" inlet and 2-1/2" outlet.

• High flow / highly efficient 66mm turbine wheel

Specifications


Compressor Wheel Inducer: 64mm
Compressor Wheel Exducer: 86mm/ 88.1mm ET
Turbine Wheel Inducer: 74mm
Turbine Wheel Exducer: 66mm
