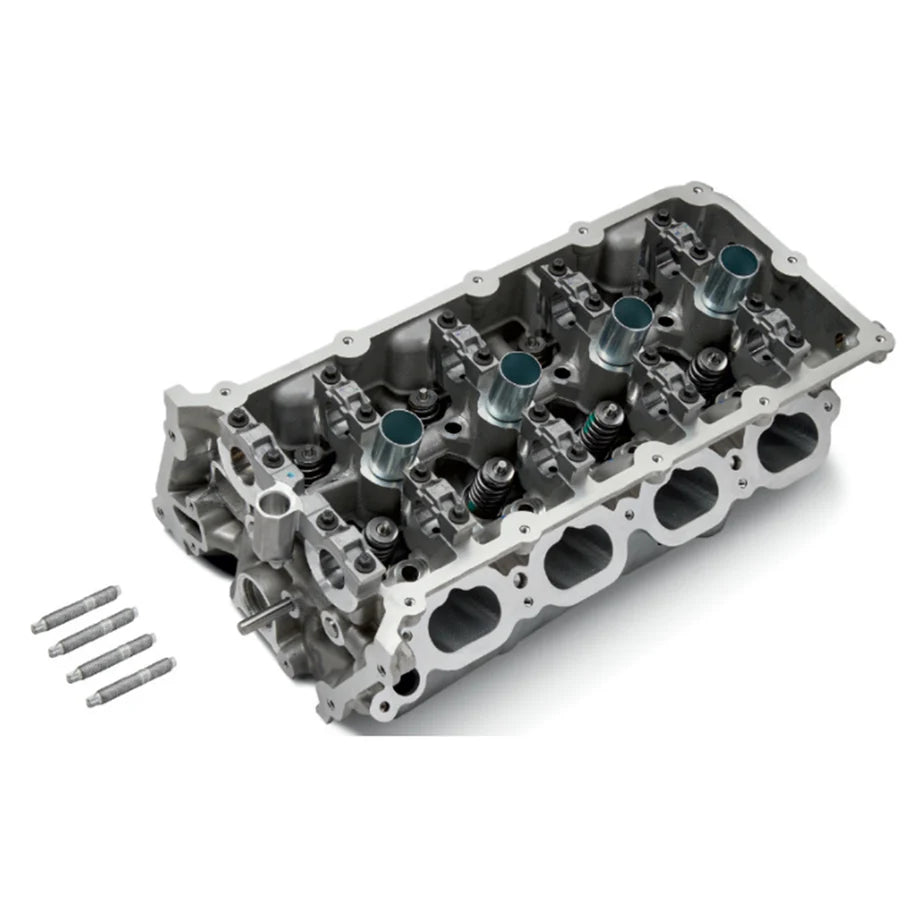

Ford Performance 5.2L Gen 3 LH Cylinder Head GT500
$2,440.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Ford Performance 5.2L Gen 3 LH Cylinder Head GT500 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Ford Performance 5.2L Gen 3 LH Cylinder Head GT500
$2,440.00
Unit price
/
Unavailable
Description
Description
- Upgraded version of Ford Performance M-6050-M52A 5.2L cylinder head
- Production 2021 GT500 LH cylinder head
- Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds
- Fully CNC ported intake ports, exhaust ports, and combustion chamber
- Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
- 38.2mm intake valve and 32.5mm exhaust valve
- For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
- New valvetrain geometry allows for higher valve lift
- Lightweight hollow-stem intake valves and sodium-filled exhaust valves
- Stiffer exhaust springs
- Upgraded valve guides
- Upgraded exhaust valve seats
- Loaded head assembly minus camshafts, rocker arms and lash adjusters
- Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
- Requires 5.2L rocker arms and lash adjusters, see M-6564-M52
- Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
- For RH cylinder head see M-6049-M52B
