FORD COYOTE TI-VCT CAPABLE HP EFI KIT, BOSCH O2
FORD COYOTE TI-VCT CAPABLE HP EFI KIT, BOSCH O2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
FORD COYOTE TI-VCT CAPABLE HP EFI KIT, BOSCH O2
Description
Description

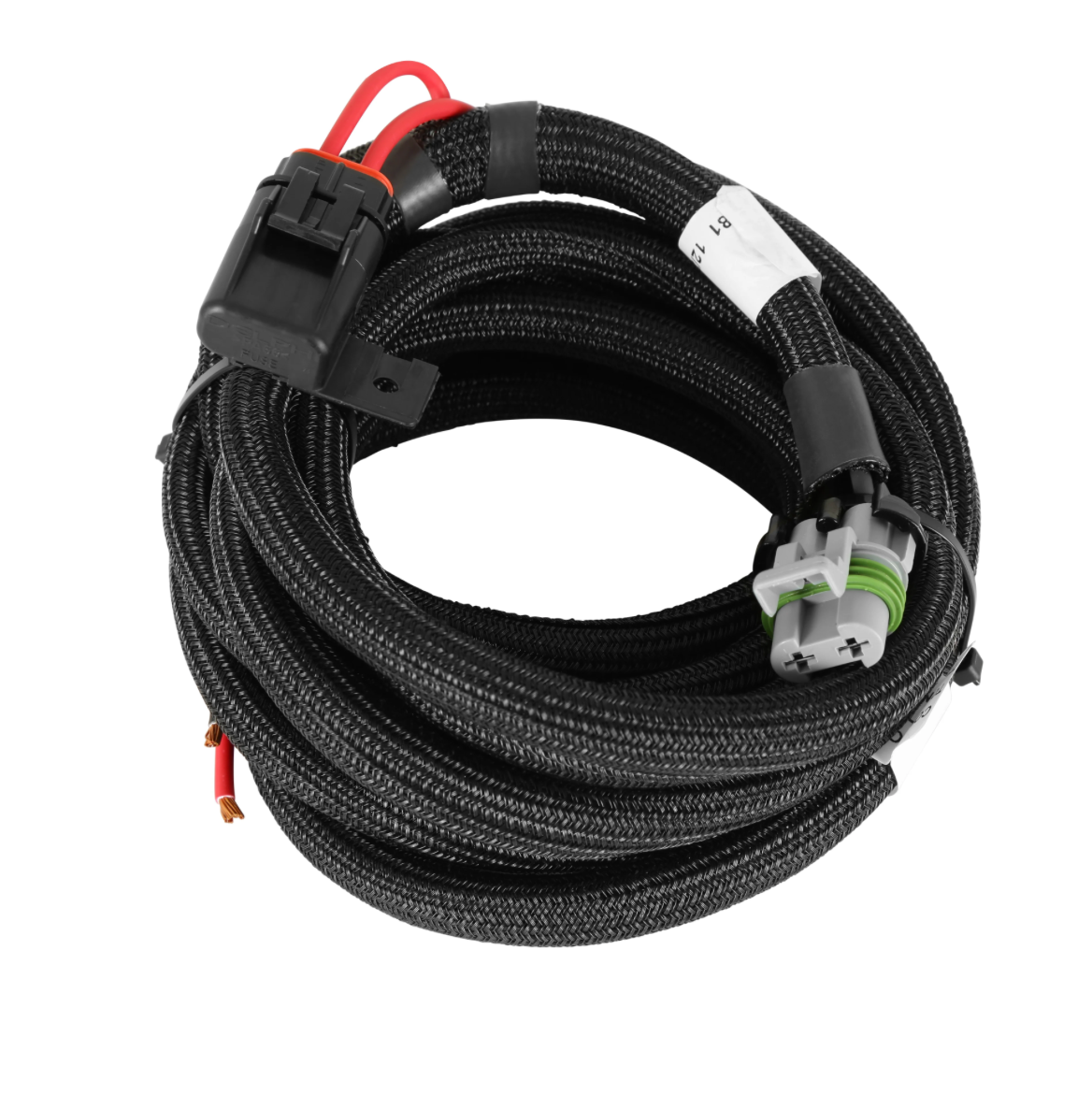

HP EFI ECU with Power Harness, Main Harness, Coil Harness, Injector Harness and Sensors includes Bosch Oxygen Sensor (Does not include Ti-VCT Controller or Harnesses)
Features:
- Now supports 2015-2017 Coyote engines
- HP EFI kits available
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using stock coils (558- 110)
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
- Compatible with HP or Dominator EFI
- Pre-calibrated Ford sensor drop downs in the Holley EFI software
- Ti-VCT Cam control down to 400 RPM
- Commanded timing matched within 1 degree
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated stock cam position tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
| Brand | Holley EFI |
|---|---|
| CAN-BUS Support | Yes |
| Category | Engine |
| Emission Code | 3 |
| Grade Type | Performance |
| Harness Application | Ford |
| Harness Type | Ignition |
| Ignition Type | Ford Coyote |
| Injector Connector | USCAR (EV6) |
| Mounting Hardware Included | No |
| Part Type | Engine Control Module (ECM) |
| Product Type | ECU Assembly |
| Removable PROM | No |
| Sub Category | Control Modules |
| UPC | 090127030264 |
| Part Number | 550-628 |
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
